Drill Stem Testing Tools Tester Valve / Circulating Valve Ball Valve Section

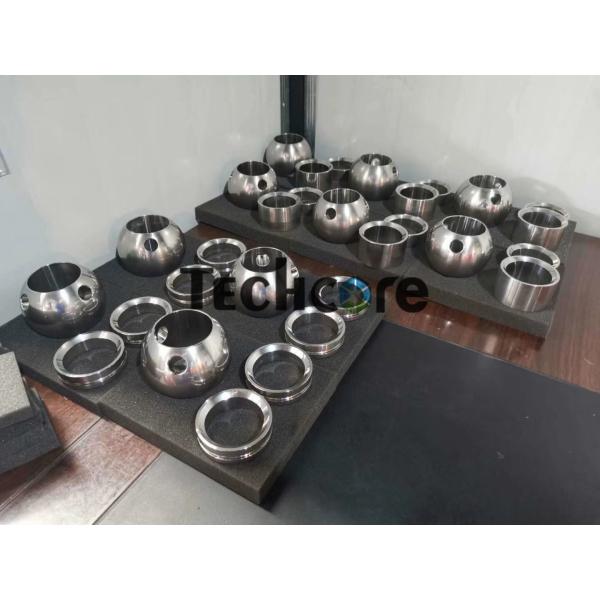

The Ball Valve assembly is the most important part of drill stem testing tools including OMNI circulating valve/Multi - circulating valve, Select tester valve, LPR-N valve and Super safety valve. Normally, the ball valve assembly is made of Inconnel steel, which issure the hardess and make the ball valve ong life service during the well testing operation.
OMNI Circulating Valve / Multi-cycle circulating valve
The ball valve section is comprised of the spring fingers, the upper seat holder, the lower seat holders, the operating pins, the ball valve assemblies ,lower adapter, etc. The ball valve will be closed before opening the circulating port, so it makes sure that the circulating medium is separated from the formation fluid in circulation The Circulating valve and ball valve work together to keep circulating pressure off the formation. The Ball Valve will close before the circuating valve opens, The ball valve closes off the workstring.
Select tester valve
The ball valve section contains the ball valve and the mechanism that rotates the ball when the tool is activated; the ball is rotated to the open position allowing the reservoir to flow into the testing string.
LPR-valve
The ball valve operates independently of internal pressure changes, like with acidizing or fracturing operations, no need special bypass tools, but if a production packer is used, the pressure will transfer to formation directly if no bypass tool involved.
Specification of the Drill stem testing tools string
| Name | Size | Specification |
| OMNI Circulating Valve | 3 7/8” and 5” OD | 105Mpa, 400F |
| LPR-N Valve | 3 7/8” and 5” OD | 105Mpa, 400F |
| Select tester valve | 3 7/8” and 5” OD | 105Mpa, 400F |
| Super Safety Valve | 8” OD | 105Mpa, 400F |
About Techcore Oil Tools
Techcore Oil Tools was rebuilt with ZZ TOP Oil Tools in 2016 to expand the production floor and products range. Techcore is expertised in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.

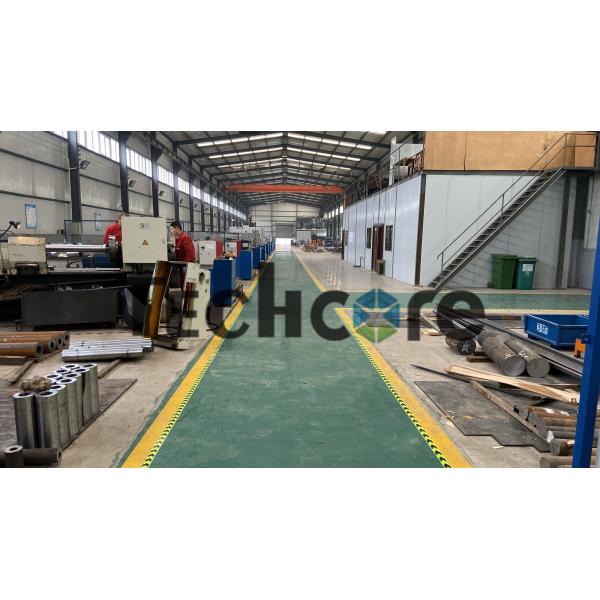

Production Floor
Drill stem testing tools for cased hole, open hole and slim hole:
Full bore retrievable packer, mechanical setting retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint, downhole tester valve, select tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.
